3247EX Scissor Lift
3247EX
[
Explosion Proof Lifts
]
3247EX is engineered for maximum uptime and compliance, featuring NFPA/NEC 70 certified shielded cabling, an operator-visible platform battery condition indicator, and an enhanced motor management system for smoother, longer-lasting operation. With resettable circuit breakers and a modular control system designed for minutes not hours of service, the 3247EX eliminates the reliability, safety, and maintenance risks found in competitive designs.
Specifications
Working Height
38 ft
11.6 m
Raised Platform Height
32 ft
9.8 m
Lowered Platform Height
48.5 in
1.2 m
Platform Size (Inside)
42 × 84 in
1.1 × 2.1 m
Platform Capacity
700 lbs
318 kg
Overall Width
47 in
1.2 m
Overall Length
108 in
2.75 m
Stowed Height
88 in
2.2 m
Deck Extension
4 ft
1.2 m
Ground Clearance (Stowed)
3.5 in
8.9 cm
Ground Clearance (Raised)
0.75 in
1.9 cm
Wheelbase
69 in
1.8 m
Inside Turning Radius
47.5 in
1.2 m
Outside Turning Radius
93.5 in
2.4 m
Drive Speed (Stowed)
1 mph
1.6 km/h
Drive Speed (Raised)
0.5 mph
0.8 km/h
Batteries
4 × 6V 250 Amp-hr
4 × 6V 250 Amp-hr
Charger
20 Amp Automatic SCR
20 Amp Automatic SCR

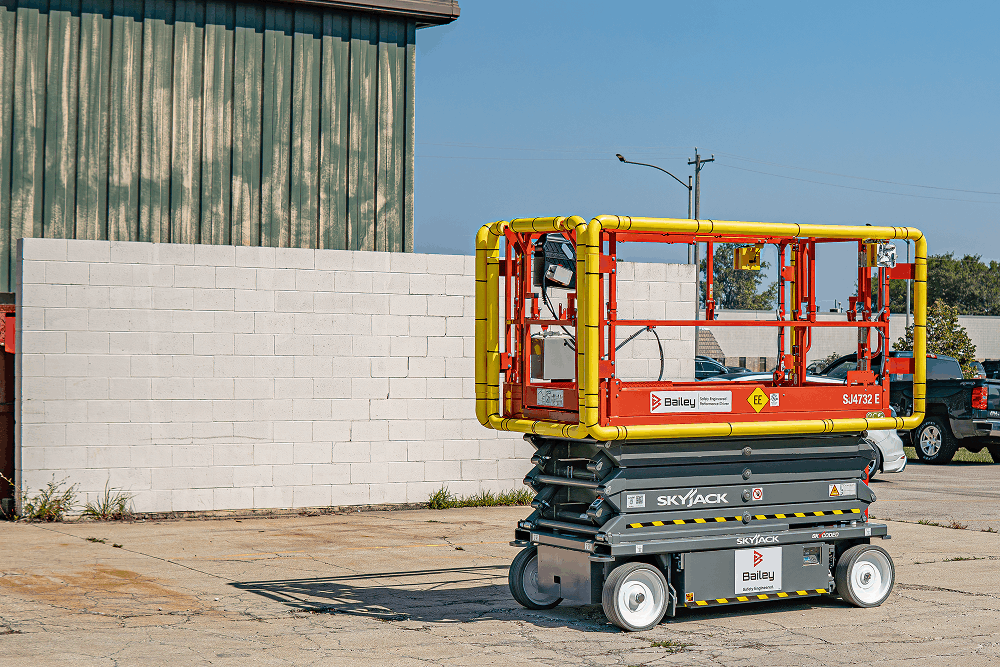

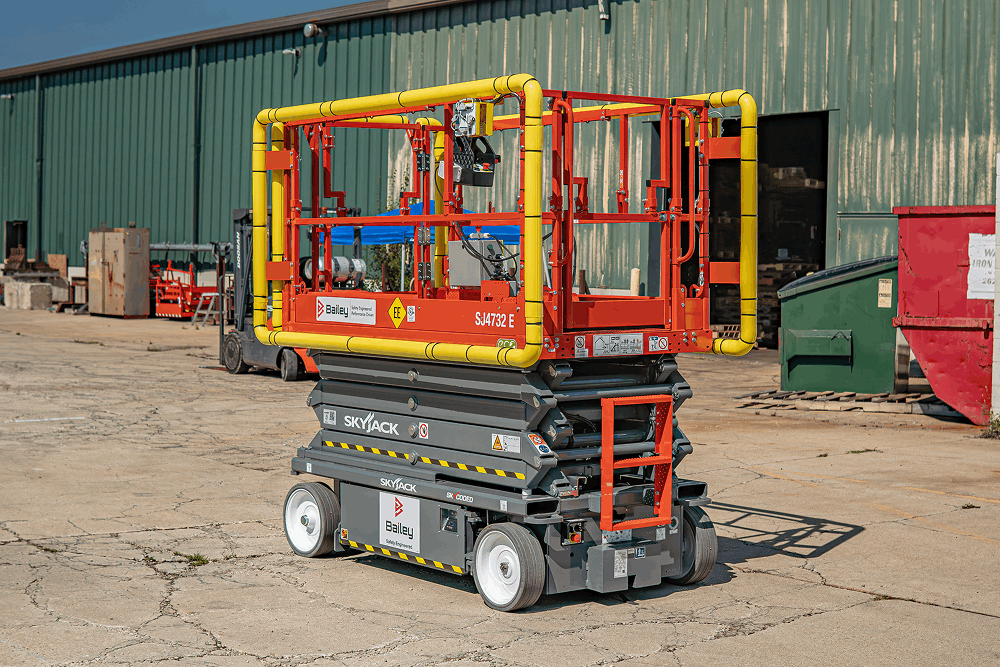

Gallery
