T40EX Telescopic Boom Lift
T40EX
[
Explosion Proof Lifts
]
T40EX is an explosion-proof articulating aerial work platform engineered for hazardous locations where safety and compliance are critical. Built to ANSI A92.20 and FM Class standards, this EX-rated MEWP delivers reliable, precision personnel access for demanding industrial environments.
Specifications
Working Height
45 ft
13.72 m
Platform Height
40 ft
12.19 m
Platform Size
36 × 96 in
0.91 × 2.44 m
Platform Capacity
1,000 lbs
453.59 kg
Overall Width
7 ft 7 in
2.31 m
Stowed Height
8 ft 1 in
2.47 m
Stowed Length
29 ft 3 in
8.91 m
Ground Clearance
1 ft
0.31 m
Tailswing
2 ft 10 in
0.86 m
Inside Turning Radius
6 ft 5 in
1.96 m
Outside Turning Radius
16 ft 8 in
4.78 m
Jib Range of Articulation
6 ft, 130°
—
Gross Weight (Est.)
14,520 lbs
6,586 kg
Platform Rotation
180° Hydraulic
—
Batteries
48V DC 650 Amp-Hr Battery
—

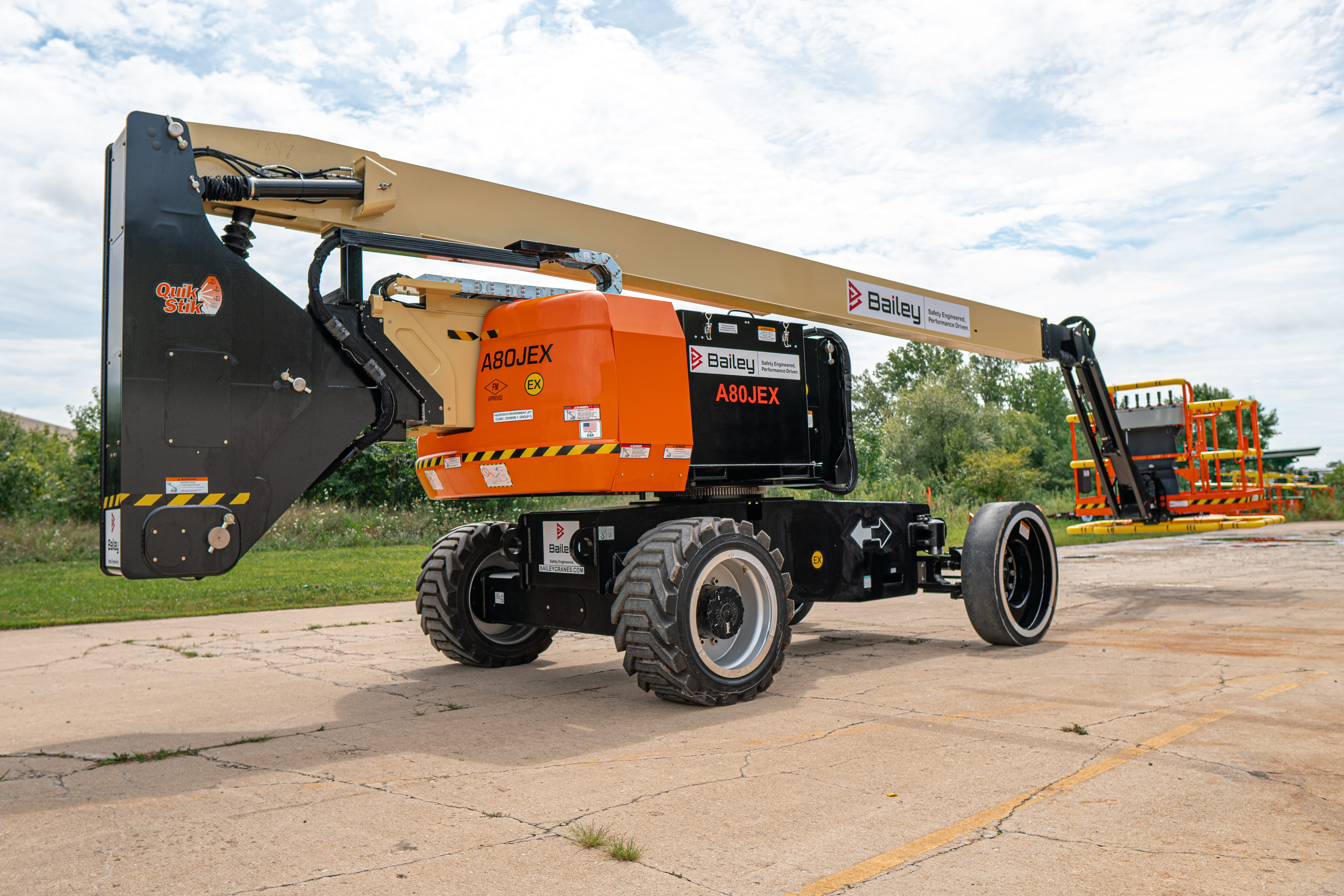

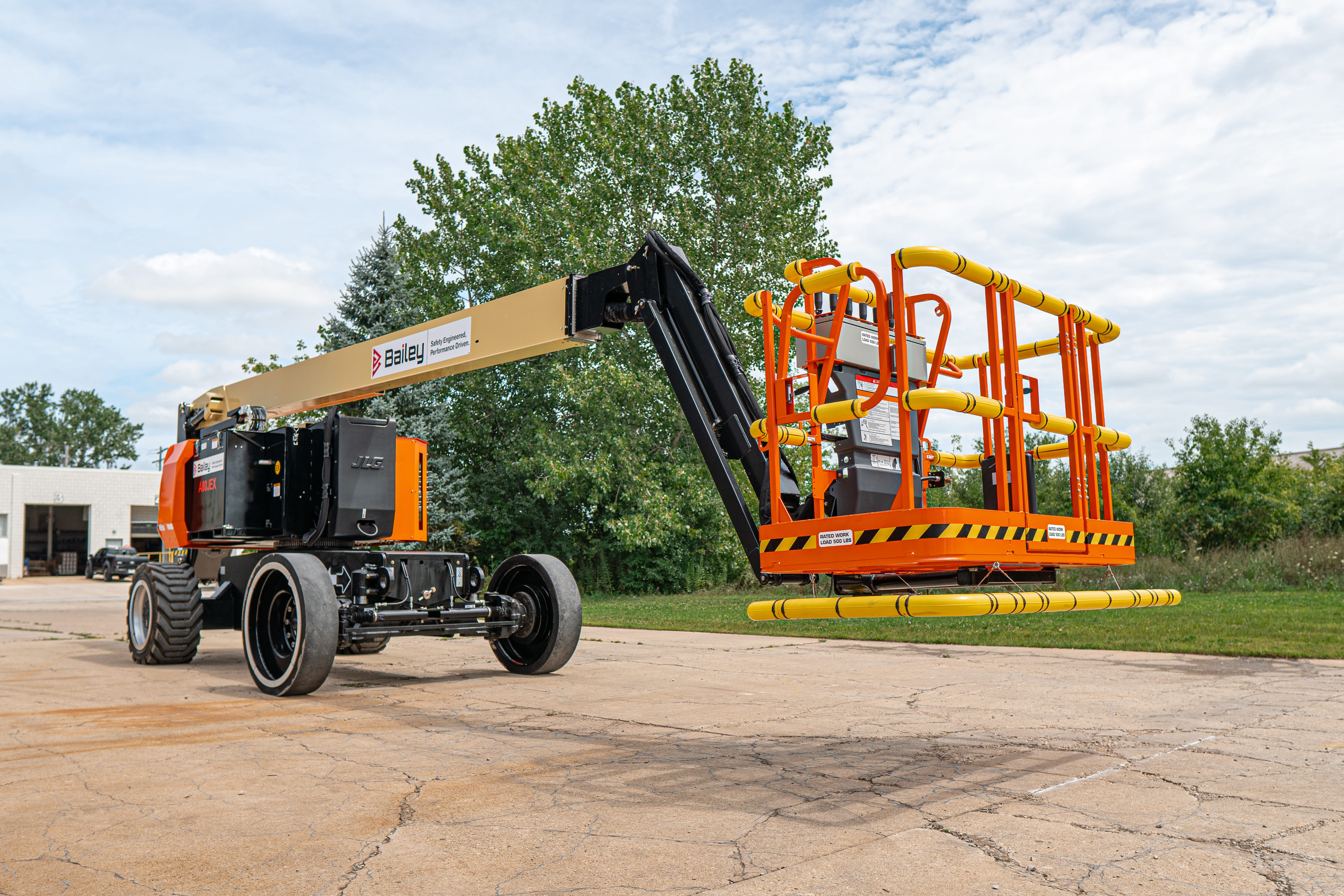

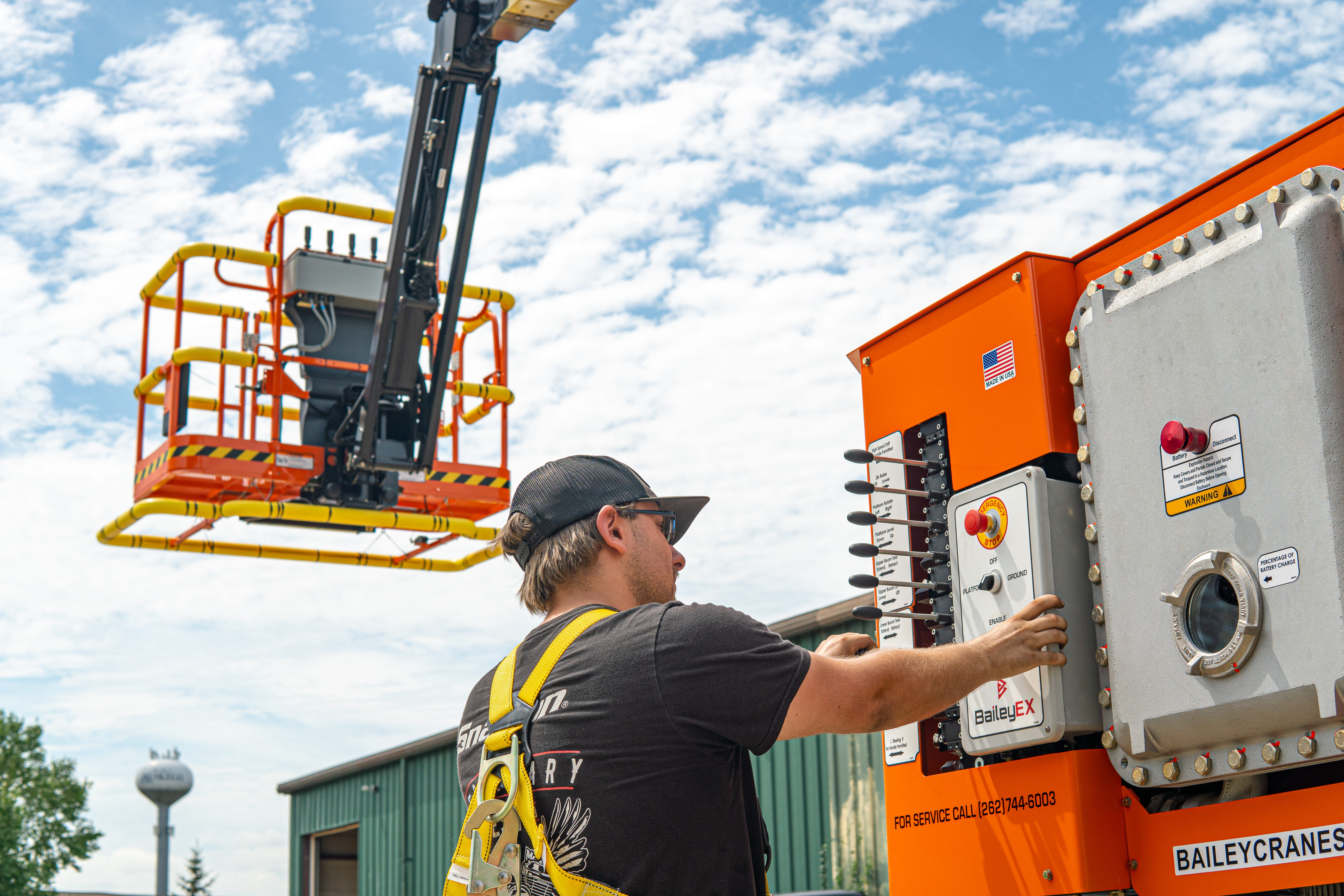

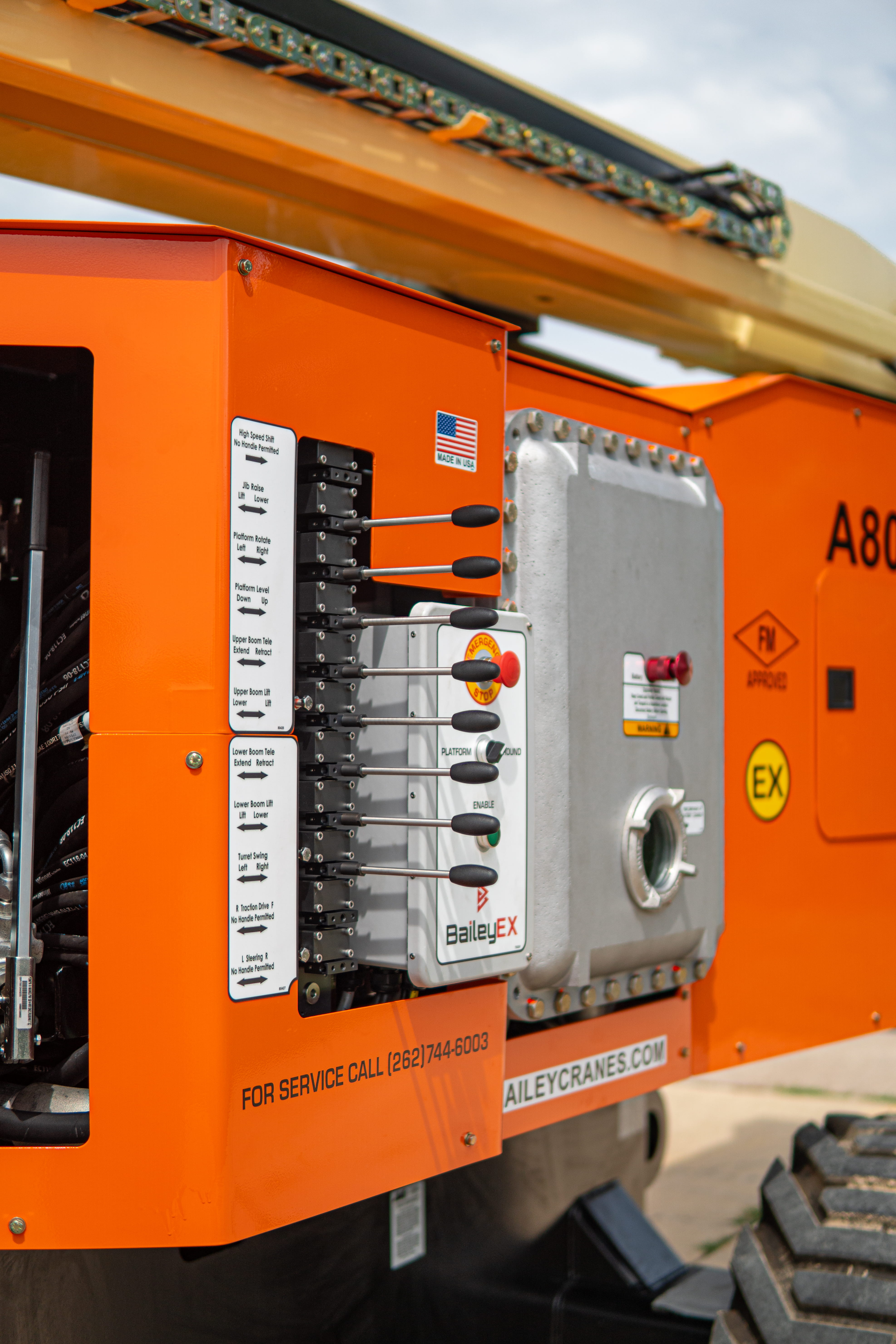

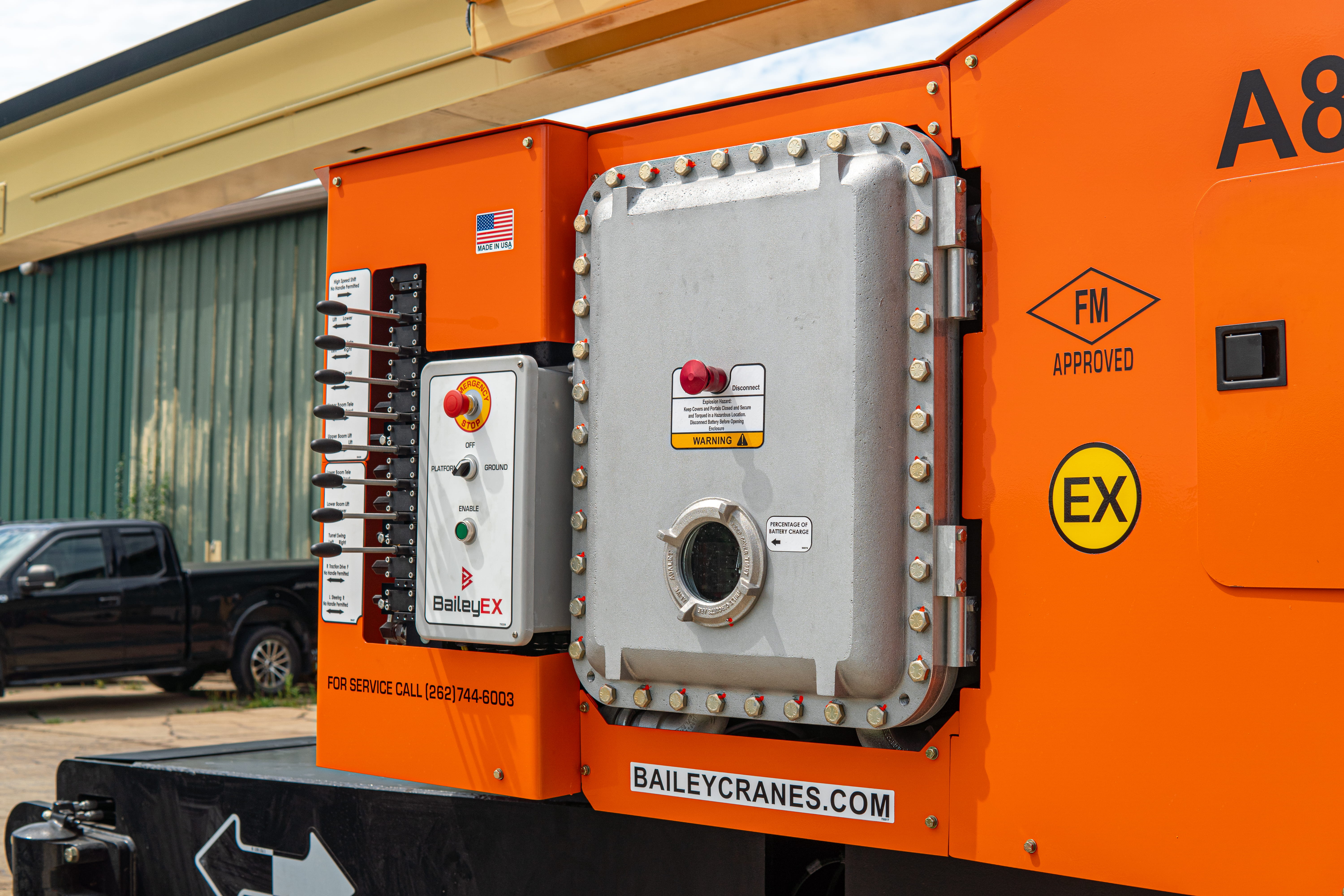

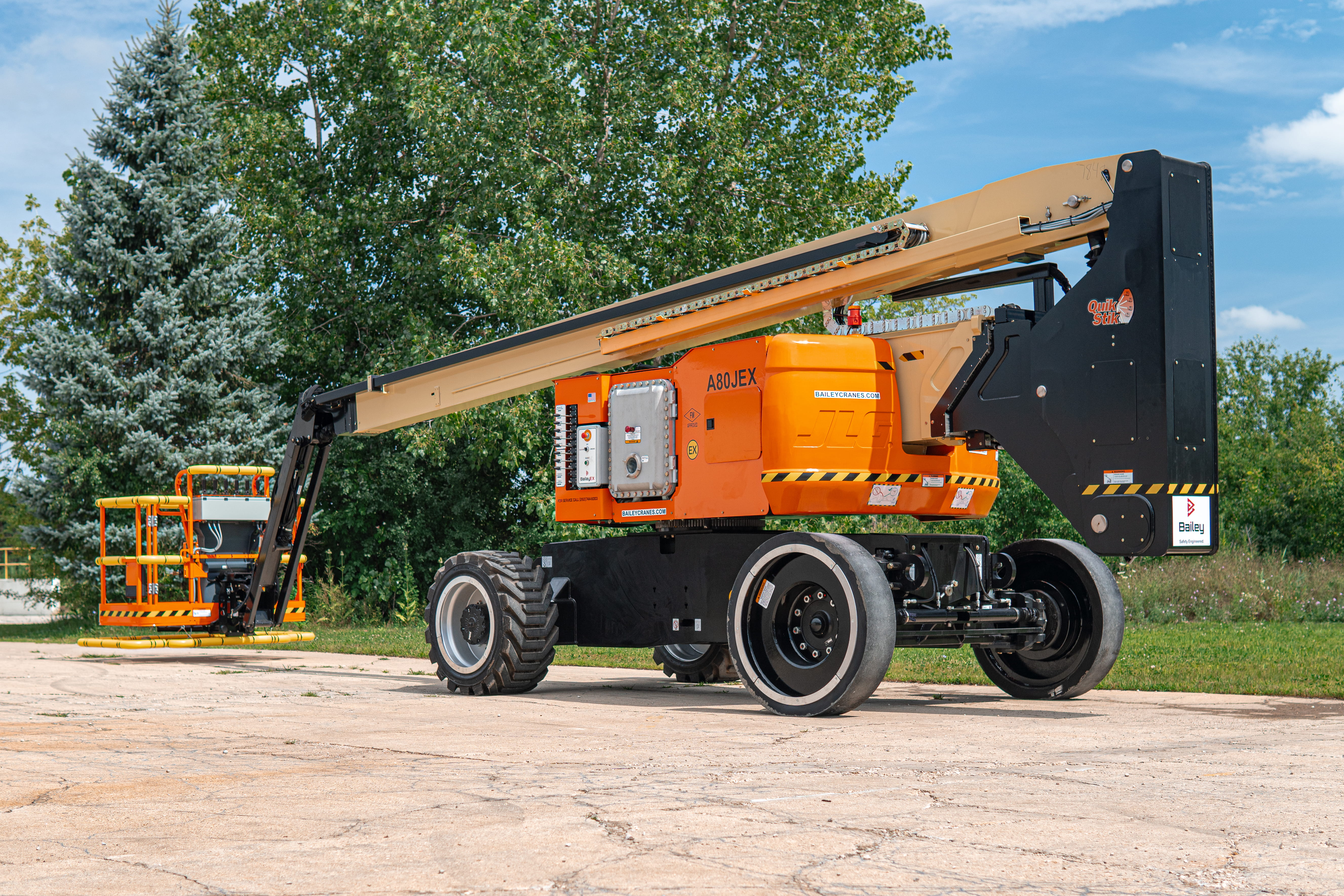

Gallery
