Hyperscale campuses live and die by speed-to-power. But the heaviest, most valuable gear in a data hall — switchgear, PDUs, UPS and battery cabinets, cooling modules — has to travel the last hundred feet through standard doorways, down congested electrical rooms, and across finished floors. That is exactly the gap the CH 6 OMNI was built to close.

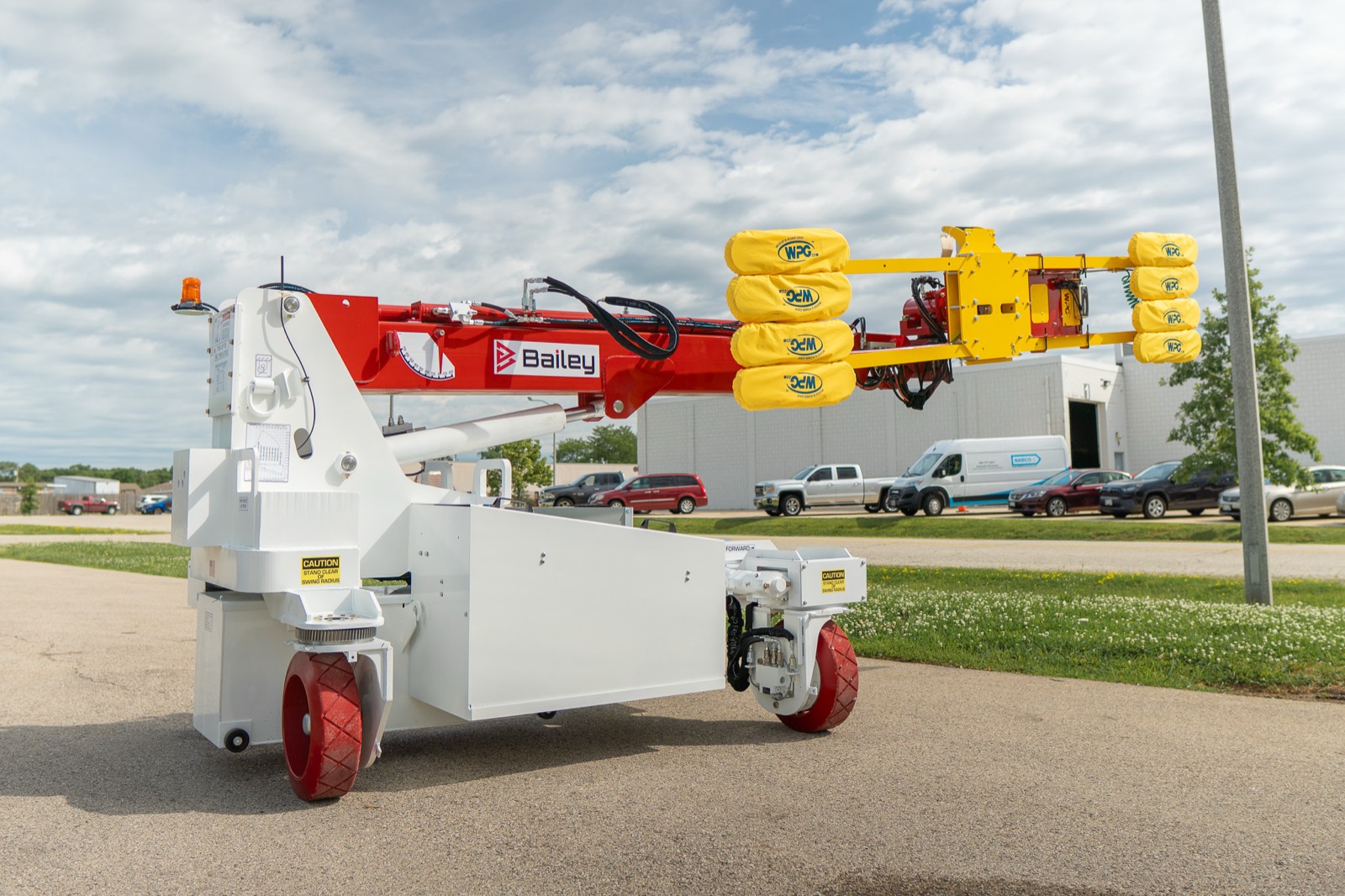

The CH 6 OMNI is Bailey Cranes' 6,000 lb-class, battery-electric, omni-directional pick-and-carry handler. It pairs the lifting muscle of our CH 6 platform with multi-directional "omni" steering and a compact, doorway-scale footprint — so a small crew can set heavy equipment precisely, indoors, without a forklift's turning radius or a truck crane's exhaust and access limits.
The last hundred feet is where data center schedules break
On a hyperscale or colocation build, the big gear arrives on the loading dock with no trouble. The problem starts once it has to move inside — into the electrical room, down the data-hall aisle, onto the raised floor. Counterbalance forklifts can't turn a long switchgear lineup in a tight room. Truck cranes can't reach through a man-door. Propane equipment can't run in an occupied, energized hall. So crews fall back on pallet jacks, pipe rollers, and manpower — slow, risky, and hard on finished slabs.
Every hour a lineup sits un-set is schedule risk against your speed-to-power date. The CH 6 OMNI removes that bottleneck by driving the load all the way to its housekeeping pad in one continuous, controlled move.
What the CH 6 OMNI is
Think of it as a self-propelled, electric mini-crane sized to work where full-size equipment can't. Five things make it a fit for mission-critical construction:
Omni-directional steering
Drive like a car, crab straight sideways while holding the load's orientation, or rotate about the machine's own center for near-zero-radius turns. Long busway and switchgear sections move down aisles that would trap a forklift.
6,000 lb-class capacity
Enough muscle for switchgear sections, PDUs and RPPs, UPS and battery modules, and CRAH/CRAC units — the components that exceed a lighter machine's rating.
Battery-electric & quiet
Zero emissions and low noise for enclosed data halls, battery rooms, and occupied facilities where propane and diesel simply aren't allowed.

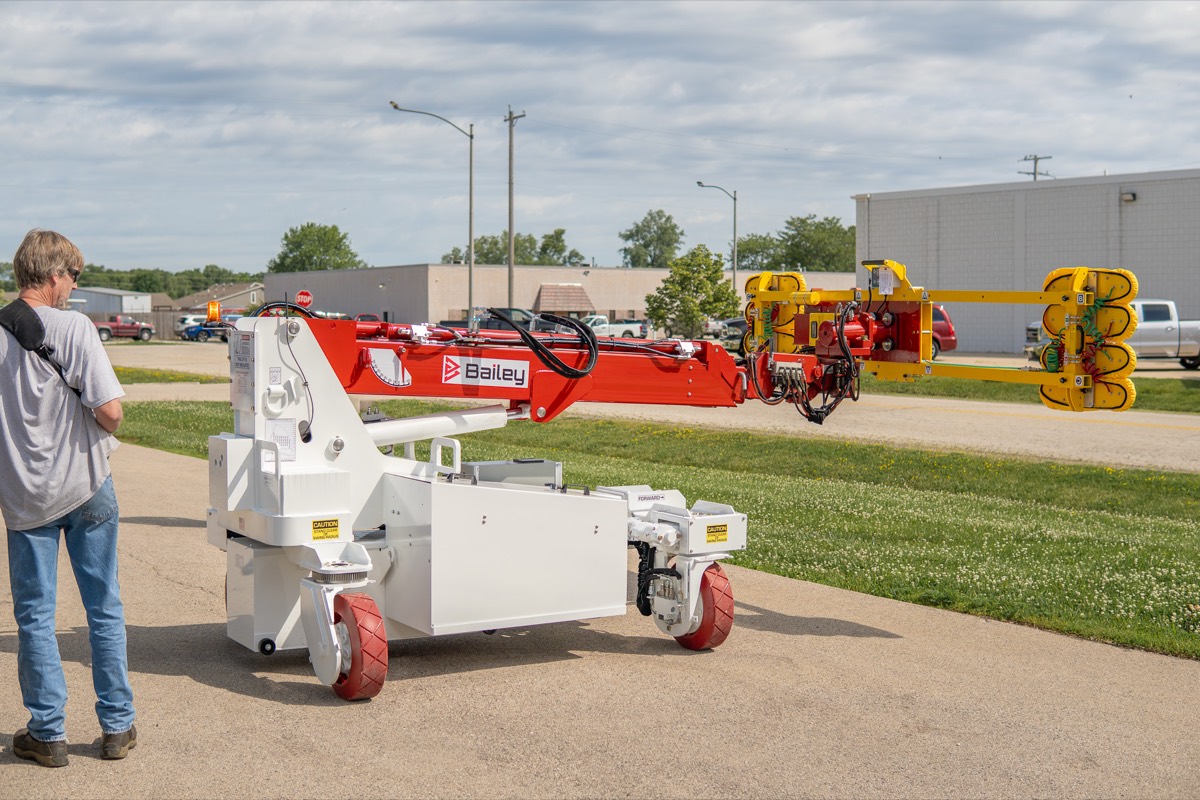

Doorway-scale footprint
Compact enough to pass through standard man-doors and work in confined interiors, putting a 6,000 lb-class lift inside spaces otherwise limited to manual handling.
Attachment-based platform
Forks, jibs, booms, winches, and vacuum manipulators swap onto the same omni chassis — one machine adapts across the electrical, mechanical, and glazing scopes of a build.
Where the CH 6 OMNI works on a data center build
Across the electrical and mechanical scopes, the same machine keeps earning its keep:
Switchgear & switchboards
Crab a lineup sideways down a tight electrical room, then rotate in place to square each section on the housekeeping pad.
PDUs, RPPs & busway
Drive a PDU through a man-door into a finished data hall and feed long busway runs down aisles with no room to turn.
UPS & battery cabinets
Set UPS modules and battery/BESS cabinets tight to the row — silently, in occupied or energized rooms.
CRAH/CRAC & cooling
Thread cooling units and fan walls through interior openings and spin them to orientation in tight galleries.
Finished- & raised-floor work
Controlled, low-speed electric travel protects coatings, slabs, and raised-floor tiles versus dragging or propane traffic.
Retrofits & equipment swaps
Replace a failed PDU, UPS module, or cooling unit inside a live hall without shutting the room down for noise or fumes.
Why data center GCs specifically care
The general contractors building today's hyperscale and colocation campuses — the tier of self-perform, mission-critical builders driving the current data-center boom — optimize for a short list of things. The CH 6 OMNI maps directly to each:
Man-door access + omni-directional precision + zero-emission operation is a combination no standard forklift, reach truck, or truck crane offers together. That intersection is the whole point of the machine.
Speed-to-power & schedule certainty
Collapsing stage-and-restage handling into one continuous move takes hours of risk out of every equipment set — and there are hundreds of sets on a campus.
The skilled-labor shortage
With electricians and MEP trades hard to staff, the metric is output per labor hour. A pick-and-carry handler lets two people do what used to take six, while cutting the manual-handling injuries that pull crews off the job.
Finished floors, air quality & floor loading
Epoxy slabs and raised-access tiles are expensive and easily damaged; enclosed halls can't tolerate combustion exhaust; and upper-level floors have point-load limits. A lighter, electric, well-distributed machine answers all three.
How the CH 6 OMNI fits the OMNI lineup
The OMNI family scales with the weight of your gear. The CH 6 OMNI sits in the middle — the everyday workhorse for the bulk of data-hall electrical and mechanical equipment, with the CH 4 below it and the CH 10 above for the heaviest lineups.
| Model | Lift capacity | Working height | Best for |
|---|---|---|---|
| CH 4 OMNI | ~4,000 lb | ~28 ft | PDUs, lighter cabinets, tight fit-outs |
| CH 6 OMNI | ~6,000 lb | ~24 ft | Switchgear, UPS/battery, CRAH/CRAC |
| CH 10 OMNI | ~10,200 lb | ~32 ft | Heaviest lineups & transformers |
Capacities reflect the CH platform ratings; final configuration depends on attachment and load center. See the CH 4 OMNI or browse the full Compact Handler line.
CH 6 OMNI data center FAQ
What is the CH 6 OMNI?
The CH 6 OMNI is Bailey Cranes' 6,000 lb-class, battery-electric, omni-directional pick-and-carry compact handler. It combines multi-directional steering with a doorway-scale footprint so a small crew can carry and set heavy equipment — switchgear, PDUs, UPS and battery cabinets, cooling units — precisely, indoors, where forklifts and truck cranes can't operate.
How much can the CH 6 OMNI lift?
The CH 6 platform is rated to approximately 6,000 lb, with a working height of about 24 ft. Because it's an attachment-based machine, effective capacity depends on the tooling and load center — share your equipment weights and dimensions and Bailey will confirm the right configuration.
Why use an electric compact handler instead of a forklift in a data hall?
A counterbalance forklift needs aisle width to turn and, if propane or diesel, emits fumes that can't accumulate in an enclosed hall. The CH 6 OMNI's omni-directional steering places long loads in tight aisles, its battery-electric drive runs zero-emission and quiet in occupied rooms, and its compact footprint fits through standard man-doors.
Can it move switchgear and UPS cabinets into a finished data hall?
Yes — that's a core use case. The CH 6 OMNI crabs a switchgear section or UPS cabinet sideways down a congested electrical room and rotates it into place on the housekeeping pad, driving through finished doorways instead of staging gear outside or muscling it by hand.
Will it protect finished and raised floors?
Controlled, low-speed electric maneuvering and a compact, well-distributed footprint help protect epoxy slabs, coatings, and raised-floor tiles versus dragging loads or running heavy propane forklifts — and make it easier to stay within raised-floor and upper-level floor-loading limits.
Who builds the CH 6 OMNI?
It's engineered and manufactured by Bailey Cranes, a Service-Disabled Veteran-Owned (SDVOSB) firm in Muskego, Wisconsin, operating an ISO 9001:2015 quality system — a fit for supplier-diversity goals on federal and enterprise data-center programs.
